Malting Equipment is designed for those who demand the highest quality equipment and process control. Through a combination of time-tested and innovative methods, we empower Maltsters to grow the emerging Craft Malt industry. Our malting barley equipment are the result of detailed engineering, advanced technology and superior craftsmanship. We offer standard Malting machine designs over a range of batch sizes, but our strength as a custom fabricator/integrator can be leveraged to manufacture a system or individual components to your exact requirements.


It consists of cleaning raw material, steep, germination, kiling and scale packing, its advantage: germination box is rectangle box, fan provides uniformity air from one end or side so as to achieve hu-miture control. Material transmission adopts mechanization, drying adopts single layer high efficiency kiln, double layer high efficiency kiln or round kiln.

The malting process starts with soaking the barley grains for 24 – 48 hours in a steeping vessel. During this time air is blown through the vessel (the steep) to add oxygen to the water and to cause a washing effect. Sand, dirt, and mould infested kernels are washed away resulting in a clean product. After approx 24 hours. the barley begins to sprout and the grain is transferred to the germination floor.

For seeds of any sort to sprout, a moist and warm environment is required. After the grains have been soaked they need to be rinsed and situated in a warm environment with light available to them. The moist barley is spread out and allowed to germinate in a warm and light environment. During this process the sprouting barley produces heat. To control the temperature of the sprouts, they have to be turned on a regular basis. Historically, this was done by hand, but in modern times it is done by mechanical turners. The modern techniques used in the malting, such as fan assisted aeration and cooling devices allow us excellent control over the malting process enabling a germination process of 5 to 6 days.

After the germination is complete, the grain is loaded onto the kiln floor. There the temperature increases gradually, drying the sprouted grains and stopping the germination process. As the temperature rises even more, the sprouted barley is cured, which improves flavor and preserves the malt.

Malt only uses state of the art, computerized kilns to ensure maximum quality control. The malted barley no longer comes into contact with the fumes from burning natural gases. Instead, the green malt is dryed using steam or heated air, thereby reducing the possibilities of impurities in smoke and fume being transferred to the barley.

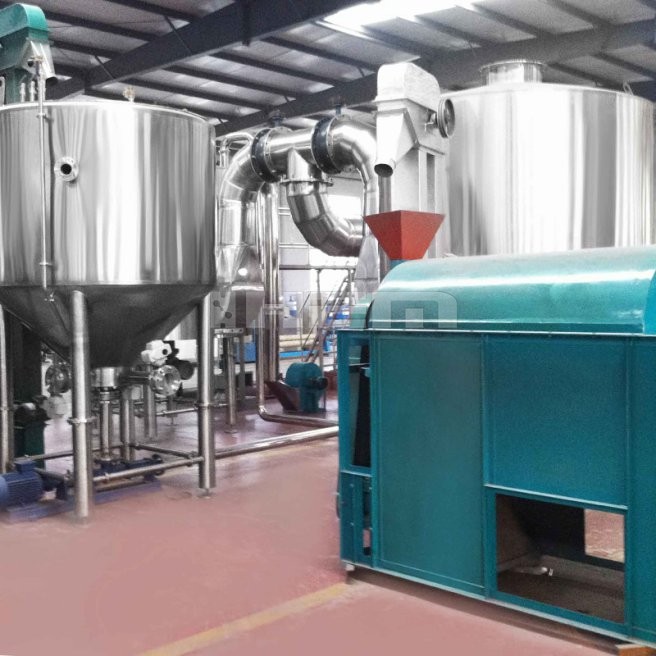

Steeping Tank Capacity 10t/Batch, at the bottom have the heat preservation device and under-arm
L*W*H 3600*3600*4500mm
Install ventilation mouth at the bottom
Install the floating overflow groove on the top of the box
Material Stainless steel 304

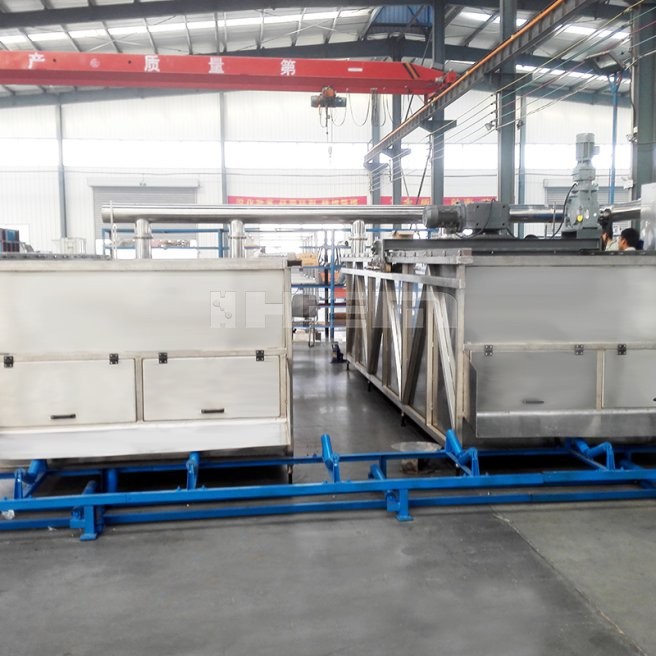

Germinating and Kilning Box Capacity 10T/Batch, Including Sieve Plate
L*W*H 18000*2000*1700mm
Chest Wall Thickness 2mm
Malt Turner Boosting Speed 0.4-0.5m/Min
Malt Turner Rotating Speed 8-9R/Min
Material Stainless steel 304
Malt Deculming Machine Production Capacity 10T/h
L*W*H 3000*1500*2500mm
Total power 15kw
Models & Specs
Item Production capacity Volume in US Gallon Heating area Tank diameter  Height
BS-500 500L/day 132 US Gallon 0.5m2 1160mm 2400mm
BS-600 600L/day 158 US Gallon 0.6m2 1160mm 2500mm
BS-700 700L/day 185 US Gallon 0.7m2 1260mm 2500mm
BS-800 800L/day 212 US Gallon 0.8m2 1260mm 2500mm
BS-1000 1000L/day 264 US Gallon 1.0m2 1360mm 2800mm
BS-1500 1500L/day 396 US Gallon 1.5m2 1560mm 2900mm
BS-2000 2000L/day 528 US Gallon 2.0m2 1960mm 3150mm
BS-2500 2500L/day 660 US Gallon 2.5m2 1960mm 3200mm
BS-3000 3000L/day 792 US Gallon 3.0m2 2060mm 3800mm
BS-5000 5000L/day 1320 US Gallon 5.0m2 2260mm 4400mm
