- Greater yield, low energy consumption
- High yield, less waste, Great filling accuracy
- Easy installation, use & maintenance

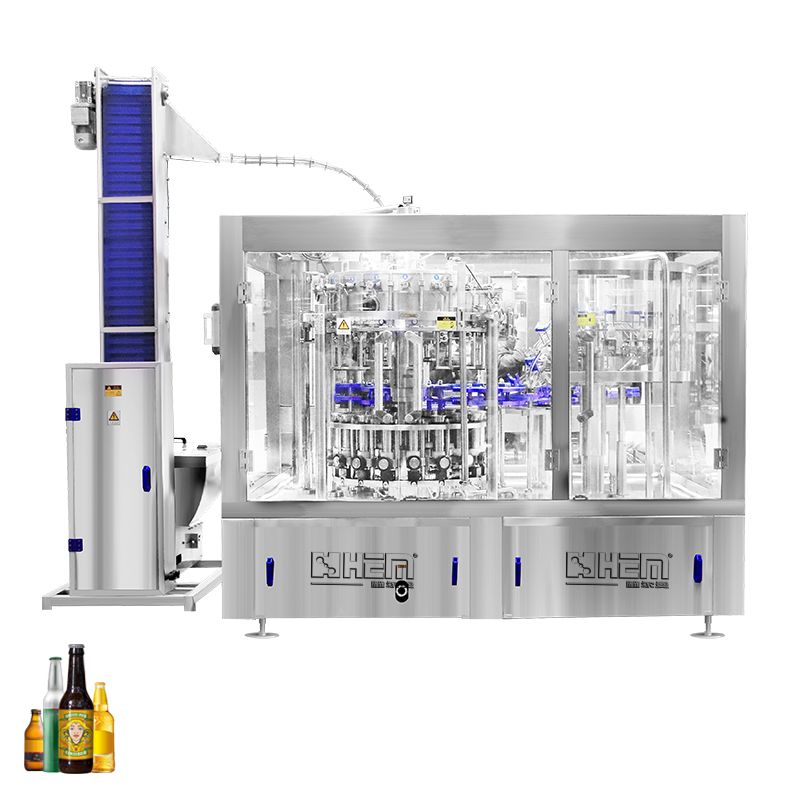

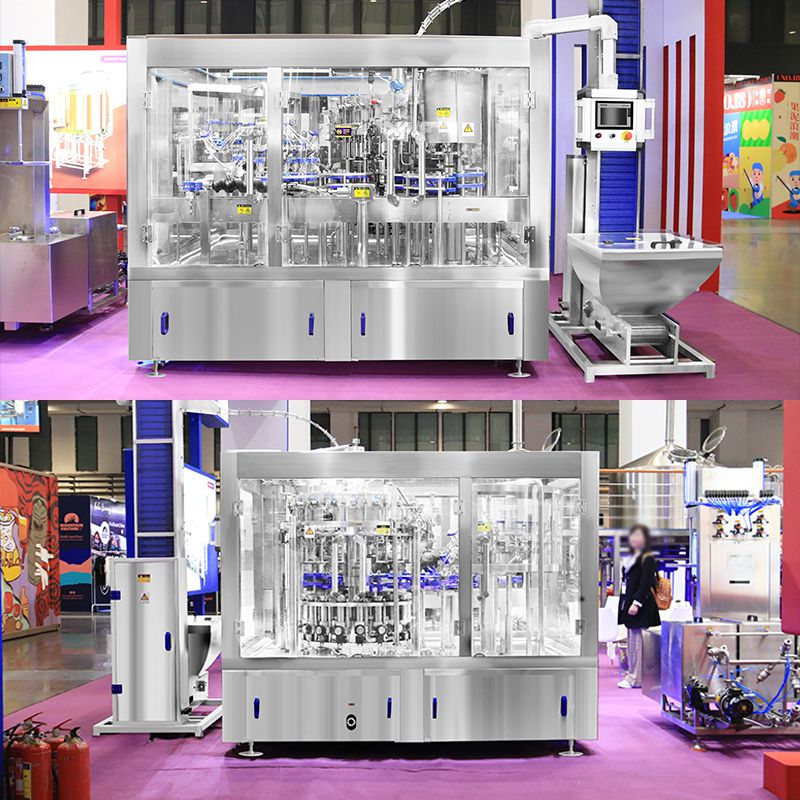

3000BPH(50BPM) Beer Bottling Machine is specifically designed to beer filling and include double pre evacuation as a standard feature on some models to ensure ultra low dissolved oxygen DO’s are maintained during the filling operation. The combination of high quality robust machine construction along with close attention to the needs of clean in place CIP ensures our beer fillers deliver efficient reliable bottling/canning production. As well as filling a wide range of all beer types, such as lagers, ales, stouts, unfiltered wheat beers and bottle conditioned beers HG's beer fillers can also be used for filling cider, hard cider, sparkling wines as well as carbonated soft drinks.
Capacity | 1000~2000BPH(330ml) |
Rinsing heads | 16 |
Filling heads | 16 |
Capping heads | 6 |
Bottle type | height: 150~ 300mm bottle neck: φ50-φ85mm bottle dia: 50-75mm |
Air consumption | 0.2m 3/min (0. 4~0.6Mpa) |
CO2consumption | 1.6kg/l000L |
N.W. | 2800Kg |
Dimensions (mm) | 1900×1830×2200(L×W×H) |
Power | 3.43KW main motor: 1.8KW hopper motor: 0.18KW vacuum pump motor: 0.75KW washing pump motor: 0.35KW bubbling motor: 0.35KW |
Water consumption | Washing 0.8 m3/h |
Vacuum pump | 0.20 m3/h |
Working voltage AC | Customized by the customers’ electrical conditions. |
Working voltage DC | Customized by the customers’ electrical conditions. |
Item | Production capacity | Filling method | Material | Dimensions |
CM-SEMI-4-1 | 100-300CPH | Isobaric filling | SUS304 | 1700*750*2200mm |
CM-4-1 | 500-700CPH | Isobaric filling | SUS304 | 1800*1200*2200mm |
CM-12-1 | 1500-2000CPH | Isobaric filling | SUS304 | 2150*1300*1900mm |
CM-20-4 | 6000CPH | Isobaric filling | SUS304 | 2200*1750*1900mm |
BM-SEMI-4-4-1 | 240-360BPH | Isobaric filling | SUS304 | 1550*550*1750mm |
BM-6-6-1 | 500-800BPH | Isobaric filling | SUS304 | 1520*1125*2350mm |
BM-8-8-3 | 800-1000BPH | Isobaric filling | SUS304 | 1850*1600*2500mm |
BM-16-16-6 | 2000BPH | Isobaric filling | SUS304 | 2300*1900*2500mm |
BM-40-40-10 | 8000-10000BPH | Isobaric filling | SUS304 | 4200*3000*2700mm |
