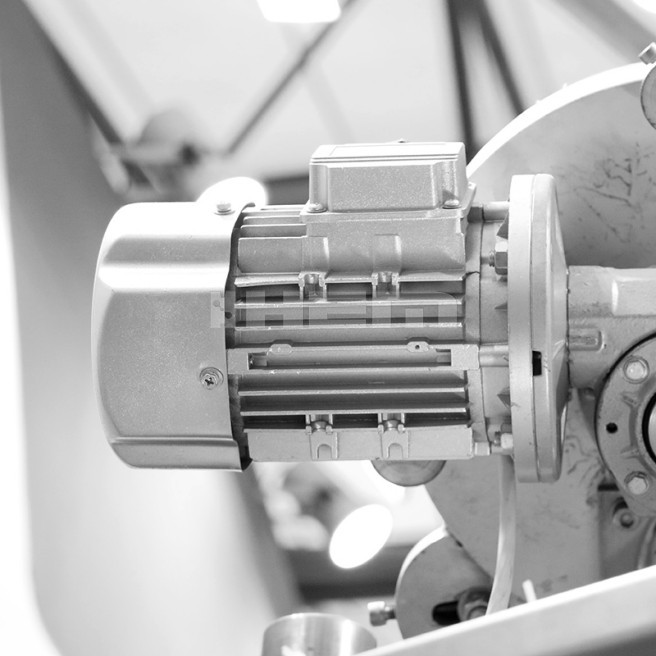

ABB Motor

Capping Part

Electrical Components

External Valve

Filling Part

Foaming Device

Siemens Touch Screen

Washing Part

Intro

Beer Bottle Filling Line is specifically designed to beer filling and include double pre evacuation as a standard feature on some models to ensure ultra low dissolved oxygen DO’s are maintained during the filling operation. The combination of high quality robust machine construction along with close attention to the needs of clean in place CIP ensures our beer fillers deliver efficient reliable bottling production. As well as filling a wide range of all beer types, such as lagers, ales, stouts, unfiltered wheat beers and bottle/can conditioned beers HG's beer fillers can also be used for filling cider, hard cider, sparkling wines as well as carbonated soft drinks.

Request a Quote Live Chat

Video

Features Parameters Models & Specs

Features

Isobaric filling principle and filling valve adopts high precision mechanical valve.
Fast filling speed, high precision in liquid level.
Siemens automatic controlling system, only starts to filling when there is a bottle/can, otherwise it will stop filling and no broken bottles.
The filling process is cleaner and pure due to its twice evacuation of bottles/cans, and more stable because of isobaric filling operation.
Specifically designed to beer filling and include double pre evacuation as a standard feature to ensure ultra low dissolved oxygen DO’s are maintained during the filling operation.
Filling cylinder braces use worm-gear box going up and down to satisfy bottles/cans of different height.
Float switches in the filling cylinder ensure a smooth liquid inlet.
Capping: we replaced the pneumatic cover with a mechanical cover, the quality and stability of the gland are improved.
All-mechanical transmission: basically reaches zero failure rate.
Compact conformation, Easy installation,use & maintenance.
Conveyor bottle/can feeding technology instead of the feeding screw and conveyer chain. Easily change the bottle/can change over parts.
The blocking bottleneck technology to convey bottles. It does not adjust the height of equipment when the type of bottle/can is changed. According to the diameter of bottle/can, you could change corresponding nylon elements such as arc slipper guide, thumb wheel etc.
Those stainless steel bottle nips of wash are designed especially, they don't touch thread position of phialine, in order to avoid the second
All of parts directly contacted with material are adopted with food stage stainless steel 304 without dead angle. So they can be cleaned easily.
High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.

Parameters

Item	Parameters
Washing heads	8
Vacuum pump	0. 20m³/h
Filling heads	8
Power	main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor: 1.1KW chain motor: 0.37KW
Capping heads	3
Dimensions	1850×1600×2500mm(LWH)
Capacity	500-800BPH
N.W.	1800Kg
Bottle type	height: 150~ 300mm bottle neck: ①50~①85mm bottle diameter:50-75mm
Working voltage AC	Customized by the customers' electrical conditions.
Air consumption	0.2m³/min(0.4～0.6Mpa)
Control voltage DC	Customized by the customers' electrical conditions.
CO2 consumption	1.6kg/l000L
Frequency converter	SIEMEMS
Water consumption	0.8 m³/h
PLC	SIEMEMS
Touch screen	Weinview
Pneumatic element	SMC

Models & Specs

Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
BS-500	500L/day	132 US Gallon	0.5m²	1160mm	2400mm
BS-600	600L/day	158 US Gallon	0.6m²	1160mm	2500mm
BS-700	700L/day	185 US Gallon	0.7m²	1260mm	2500mm
BS-800	800L/day	212 US Gallon	0.8m²	1260mm	2500mm
BS-1000	1000L/day	264 US Gallon	1.0m²	1360mm	2800mm
BS-1500	1500L/day	396 US Gallon	1.5m²	1560mm	2900mm
BS-2000	2000L/day	528 US Gallon	2.0m²	1960mm	3150mm
BS-2500	2500L/day	660 US Gallon	2.5m²	1960mm	3200mm
BS-3000	3000L/day	792 US Gallon	3.0m²	2060mm	3800mm
BS-5000	5000L/day	1320 US Gallon	5.0m²	2260mm	4400mm
